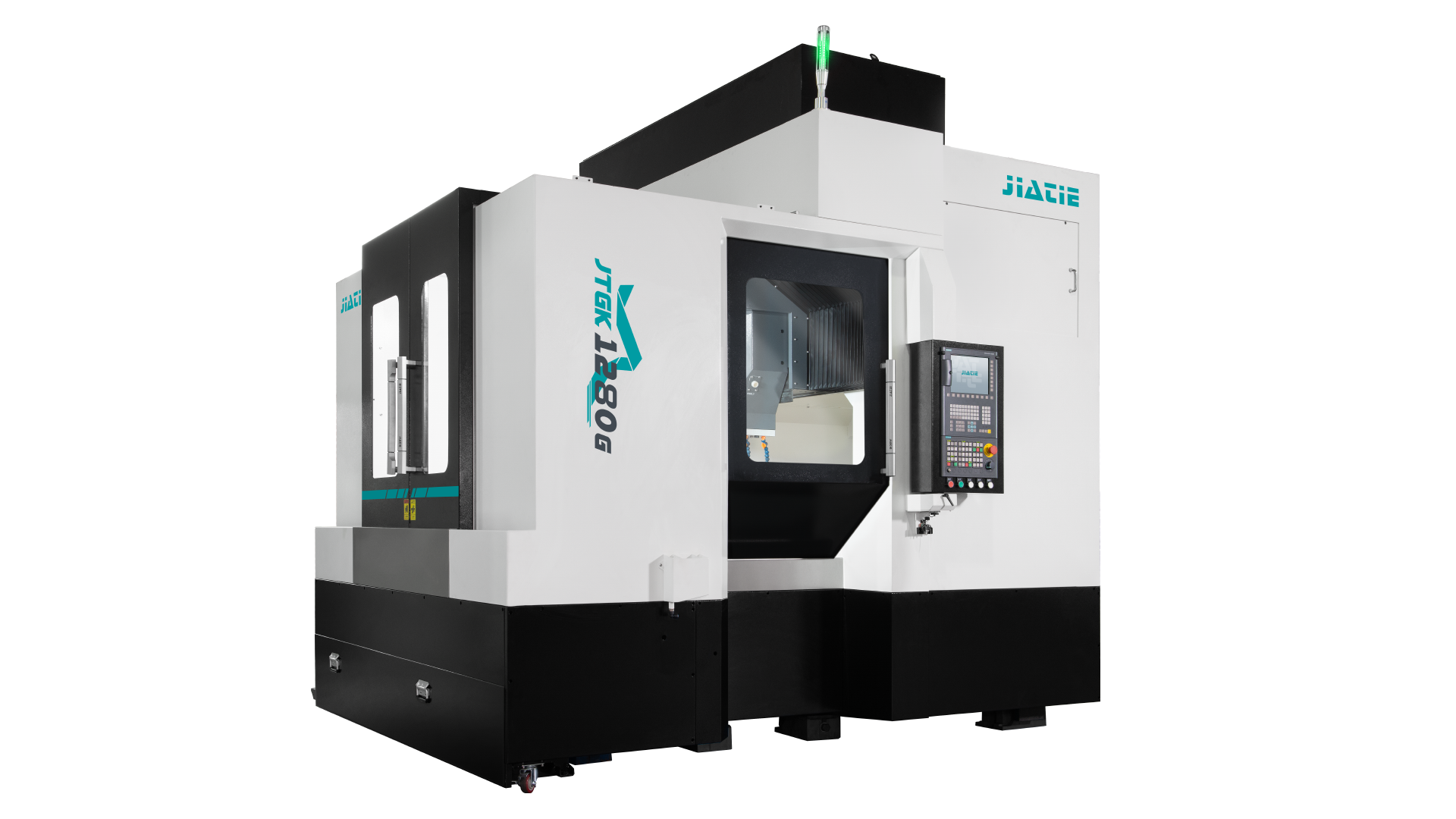

Long distance travel machine and high speed JTGK-1280G

Large stroke, suitable for processing molds and large products, long processing, efficiency and stability, precision level μ and good surface roughness

JTGK-1280G-is a JIATIE brand professional high speed machine that integrates advanced CNC technology and new mechanical design. It uses Jiatie's unique design and assembly process, has outstanding dynamic processing characteristics, and has efficient and high-precision milling processing capabilities. It is an ideal machine for batch processing of molds and large products.
According to the fast cutting requirements of metal parts and molds, JTGK-1280G precision linear sliding rails are adopted and precision three-axis screw rod assembly to provide excellent high-speed milling performance and high precision.
● Excellent performance at high processing speed and high precision
● World famous high-speed CNC system with stable and reliable operation.
● New machine structure design, best processing performance
● High processing speed, quality and high precision
● Integrated appearance design, more convenient control and control and takes up less space
● Convenient and simple maintenance, long service life
● Optional fully closed loop system makes machine processing more accurate and reliable.

  • Machine model
    1280G
  • Travel
    800×1200×500mm
  • Rotary angle
    Can equip with 360º 4th axis
  • Worktable dimension
    1300×800mm
  • Spindle rotation speed
    18000rpm
  • Spindle taper
    HSK A63
  • Tool magazine capacity
    14/24
  • Control system
    Siemens 828D
  • Machine weight
    2500kg
  • Industry
    Multiple-surface component and 5-axis simultaneous machining
