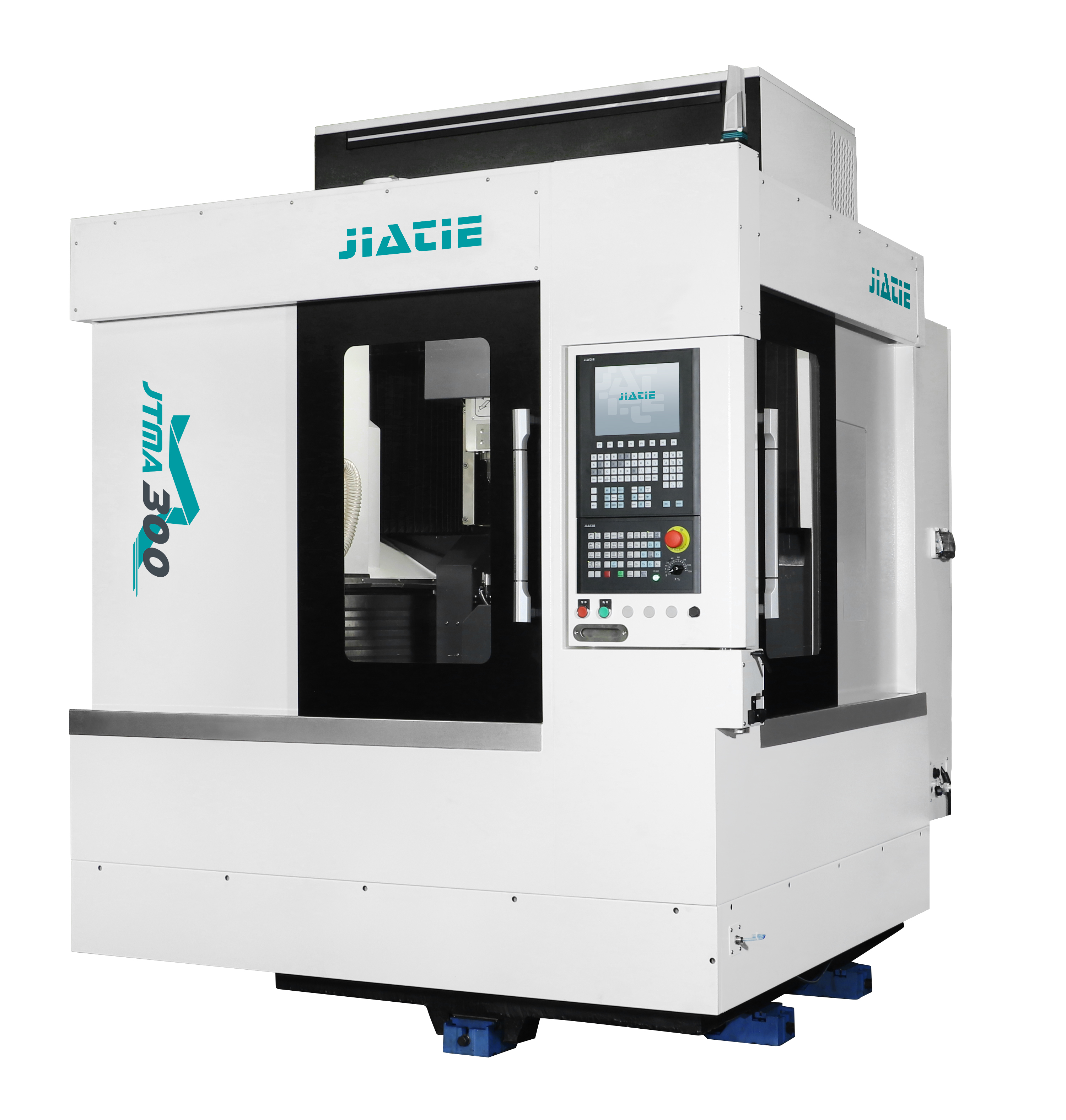

JTMA-300 High Speed 5-axis machining center

JTMA-300 High-speed 5-axis machining center is a machine researched and developed by KEJIE TECHNOLOGY for products requiring simultaneous multi-axis processing. It can provide accurate 5-axis simultaneous processing of metal or non-metal materials. The machine is equipped with high precision and stability axis 5 cradle rotating JIATIE tables. The machine bed structures, beam, shaft box, etc are improved and strengthened, the machine has good machine rigidity and excellent vibration suppression property. It is equipped with fully short-circuited coil control technology, this makes the machining properties of the machine excellent and outstanding machining performance, suitable for machining 5-axis products such as molds, precise components, etc.

1. Portal structure makes machine dynamic and precision retention better.

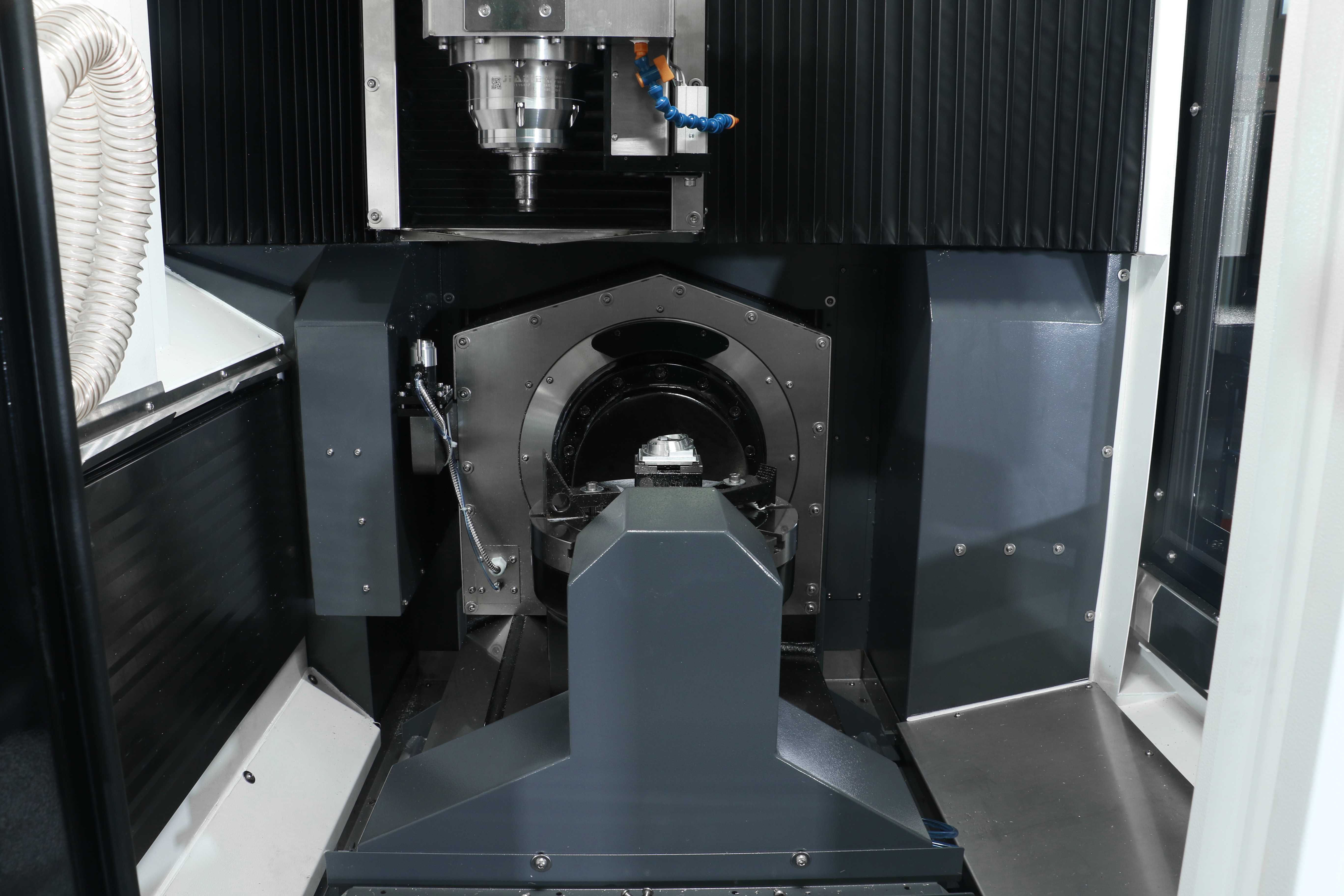

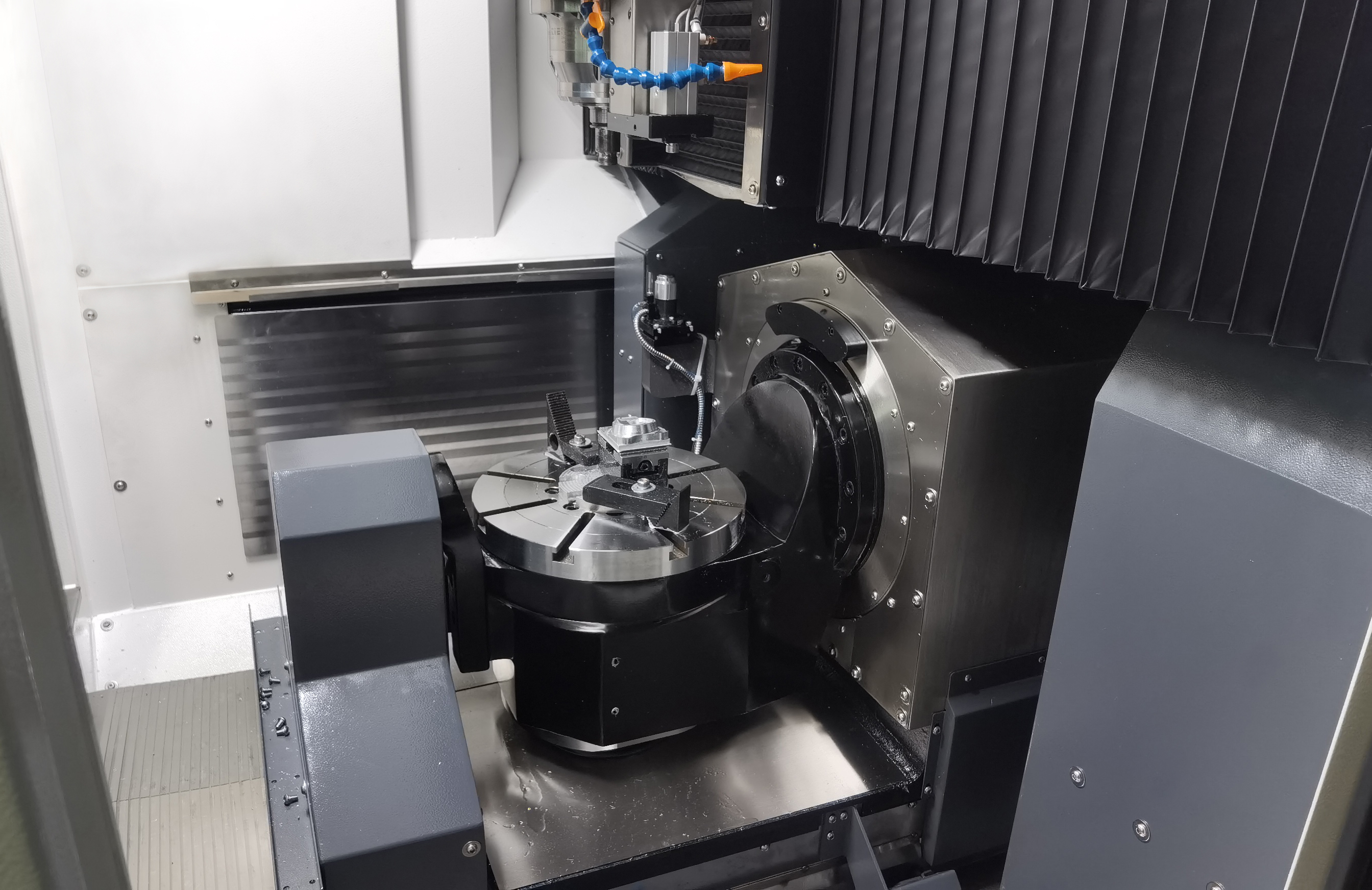

2. It is equipped with a 5-axis DD direct drive turntable.
The moving parts and processing area are completely insulated, it is convenient for cleaning the machine.
4. Reasonable and favorable design of human-machine interaction, provides convenience and convenience of the operator.
5. Automatic wireless adjustment of the rotating centers of the probe axis 5 (option).
6. It is equipped with fully closed loop control technology, which makes the processing more accurate and reliable.
7. High precision, fast travel, high efficiency machining capacity.
8. Favorable human-machine interface interaction.
