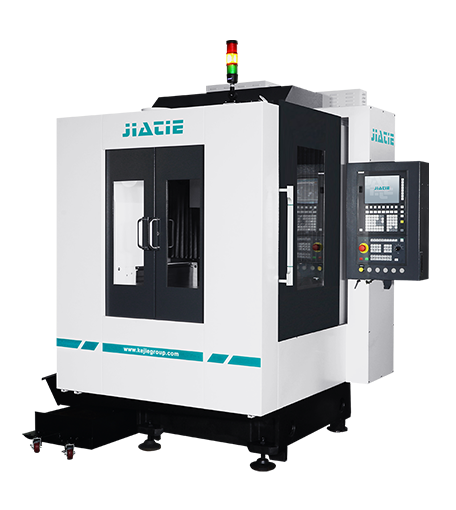

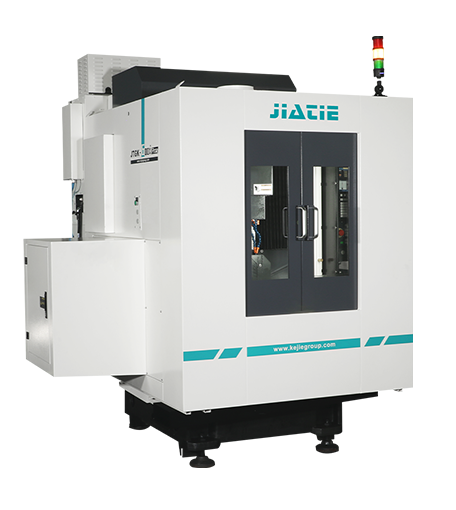

JTGK-600i Pro2 High-Speed CNC Milling Machine
Product features:
- Jiatie has 26 years of industry experience, stable and reliable performance
- The whole machine is specially designed to reduce deformation and improve long-term processing accuracy
- Rich series configuration, suitable for a variety of industry application scenarios
- Provide customers with more cost-effective machine tool solutions in high surface quality application scenarios
Processing materials:
Copper, aluminum, steel, stainless steel and other materials
Application range:
Processing of high surface requirements industries such as auto parts, electrodes, and precision molds
-
X/Y/Z axis travel1100/900/920(mm)
-
Working desk size630x800 mm
-
Maximum load of workbench1000kg
-
Spindle power/maximum speed5000RPM/22kw
-
Maximum movement speed30m/min
-
Positioning accuracy0.008mm
-
Repeatability0.005mm
-
VoltageThree-phase AC 380V ±5% 50Hz
