JTGK-1100i High-speed CNC milling machine Automatic 5-Axis Cnc Machining Center Drilling Grinding Machine All In One Processing

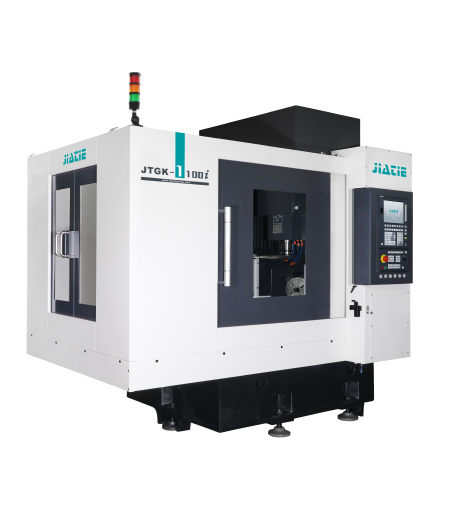

JTGK-1100i High-Speed CNC Milling Machine
Product features:

- The whole machine is specially designed to reduce deformation and improve long-term processing accuracy

- Rich series configuration, suitable for a variety of industry application scenarios

- Provide customers with more cost-effective machine tool solutions in high surface quality application scenarios

Processing materials:

Copper, aluminum, steel, stainless steel and other materials

Application range:

Processing of high surface requirements industries such as auto parts, electrodes, and precision molds



  • X/Y/Z axis travel
    1100/900/920(mm)
  • Working desk size
    630x800 mm
  • Maximum load of workbench
    1000kg
  • Spindle power/maximum speed
    5000RPM/22kw
  • Maximum movement speed
    30m/min
  • Positioning accuracy
    0.008mm
  • Repeatability
    0.005mm
  • Voltage
    Three-phase AC 380V ±5% 50Hz
