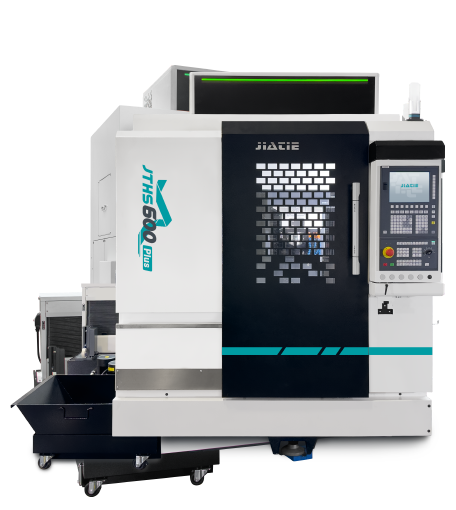

JTHS-600 Plus Cnc High Speed Machine Cnc Drilling Machine High Speed Drilling And Tapping Center For Sale

Product features:

- Jiatie's self-developed vibration suppression technology ensures long-term surface roughness and geometric accuracy, maximizing the yield of one-time processing

- High-rigidity bed and spindle structure ensure efficient cutting performance, reduce repeated clamping, and one-time rough and fine processing

- Integrated appearance design improves human-machine interaction efficiency, and operation and learning are simple and convenient

- A variety of optional configurations and in-machine cleaning methods to adapt to different machining needs and automation solutions

Processing materials:

Special copper, aviation aluminum, high-hardness steel, quenching materials, etc.

Application range:

Mold inserts, precision electrodes, precision parts processing

  • X/Y/Z axis travel
    1100/900/920(mm)
  • Working desk size
    630x800 mm
  • Maximum load of workbench
    1000kg
  • Spindle power/maximum speed
    5000RPM/22kw
  • Maximum movement speed
    30m/min
  • Maximum processing speed
    30m/min
  • Positioning accuracy
    0.008mm
  • Repeatability
    0.005mm
  • Voltage
    Three-phase AC 380V ±5% 50Hz
