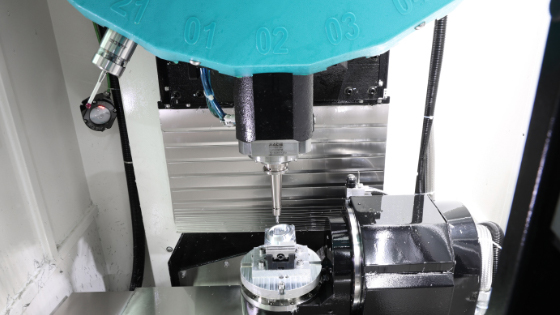

JTDR-160 5-Axis Machining Center
JTDR-160 5-Axis Machining Center
Five-axis batch machining High-speed milling on small parts
It is widely used in dentistry (medical), 3C products, automobiles, instruments and meters, light industry and textiles, electronics and electrical appliances, aerospace and machinery manufacturing, and other parts processing.
copper,aluminum,steel,stainless steel, magnesium,titanium,etc
Five-axis batch machining High-speed milling on small parts
It is widely used in dentistry (medical), 3C products, automobiles, instruments and meters, light industry and textiles, electronics and electrical appliances, aerospace and machinery manufacturing, and other parts processing.
copper,aluminum,steel,stainless steel, magnesium,titanium,etc

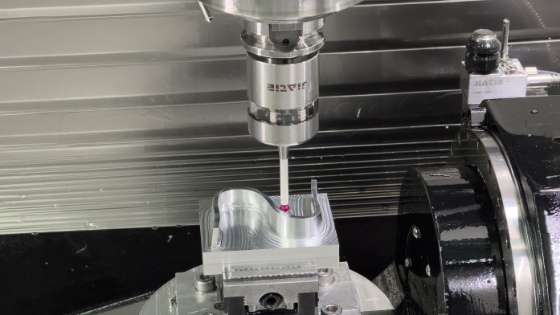

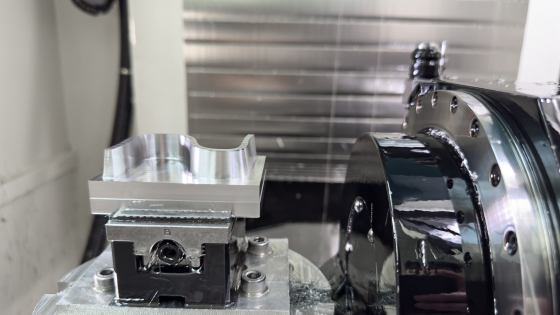

Product Processing Video
Advantages of The Product
Lightweight and high rigidity
no restrictions on installation floors, optimizingspace utilization.
The machine tool has anintegrated structure
compact dimensions and small footprint.

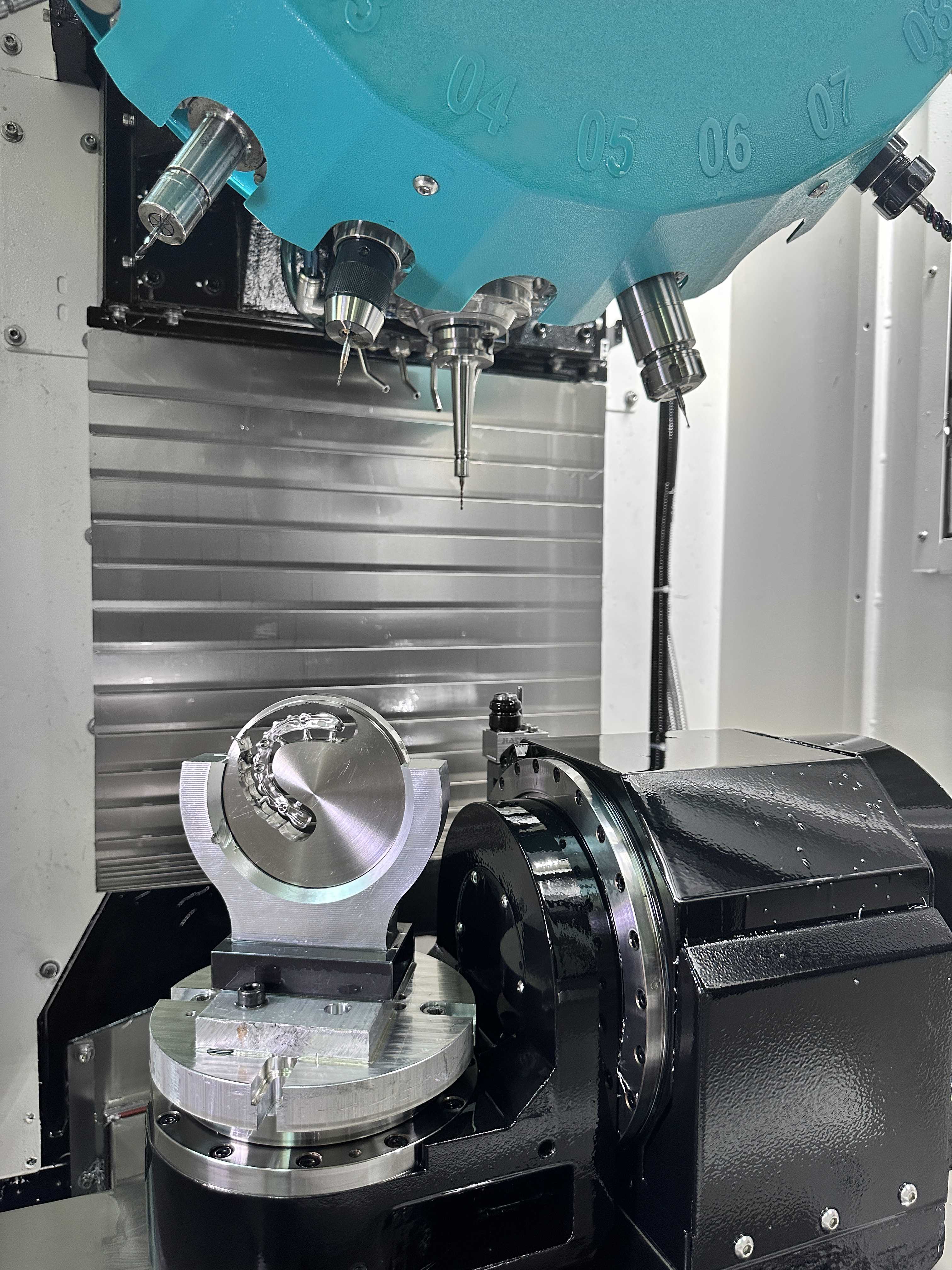

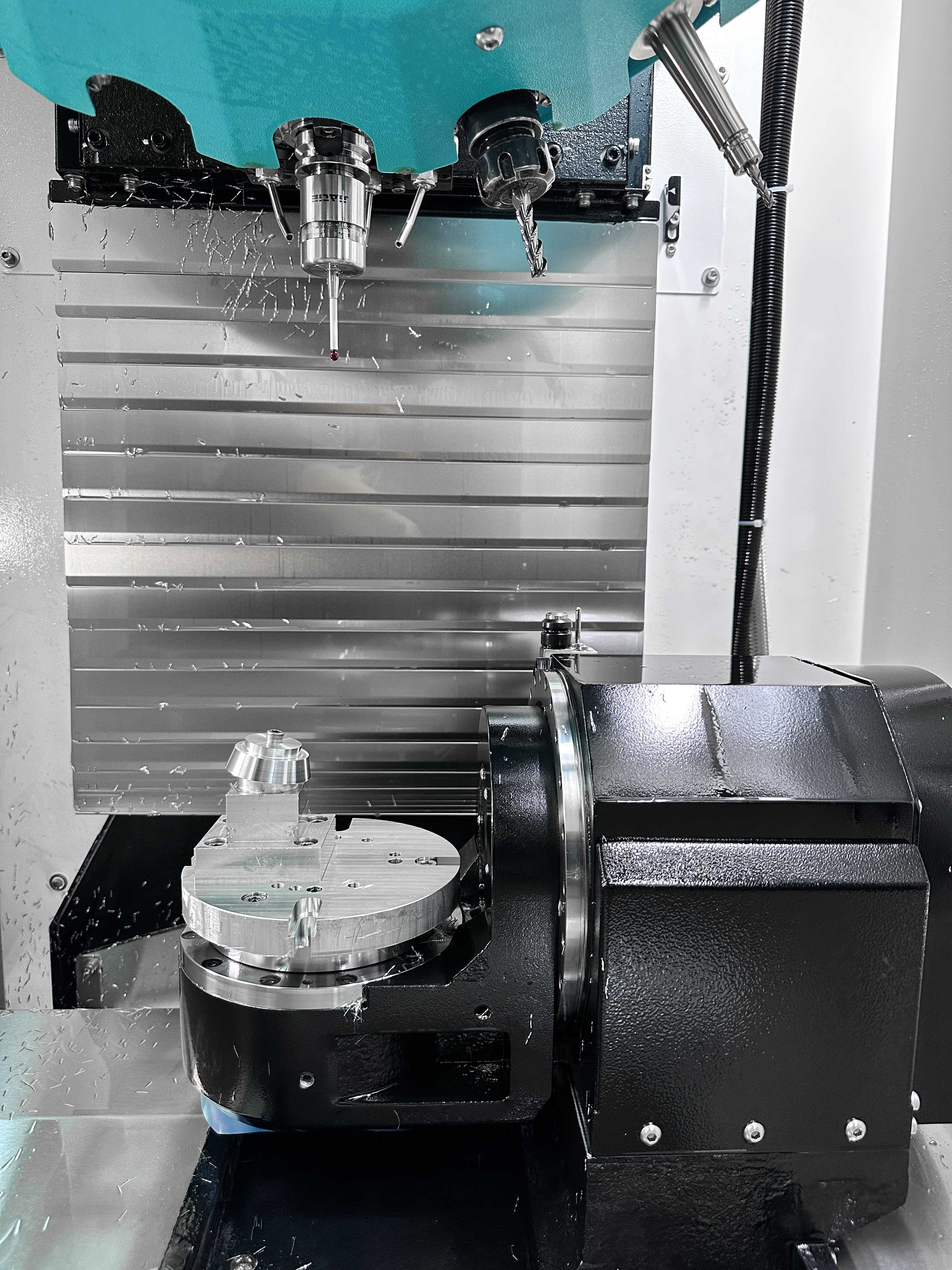

DD direct-drive high-speedturntable
accurate and reliable positioning
Application Cases

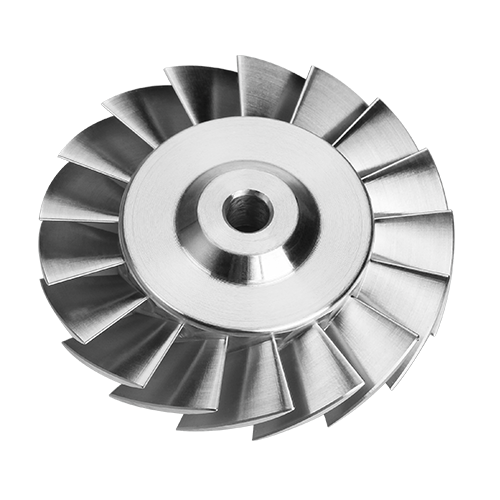

High-accuracy impeller

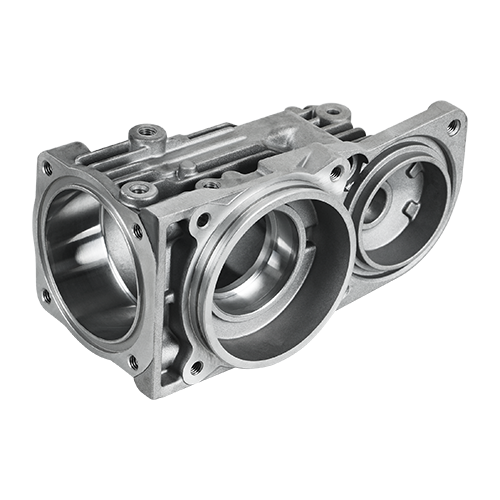

Metal component

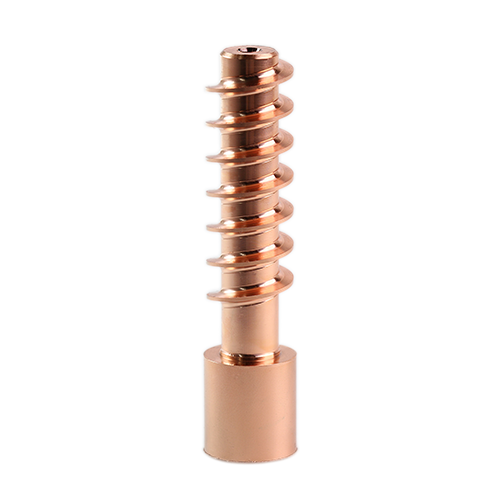

Worm gear thread copper male lectrode

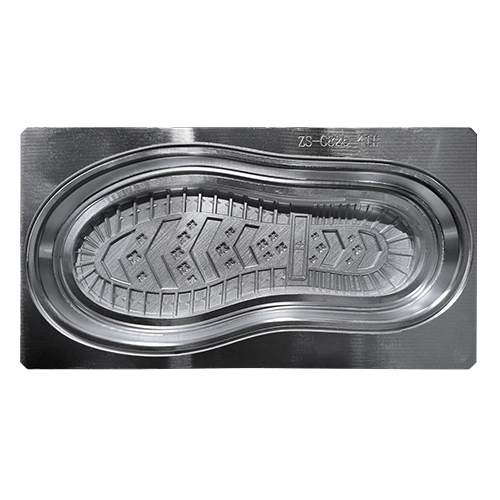

Shoe bottom mold

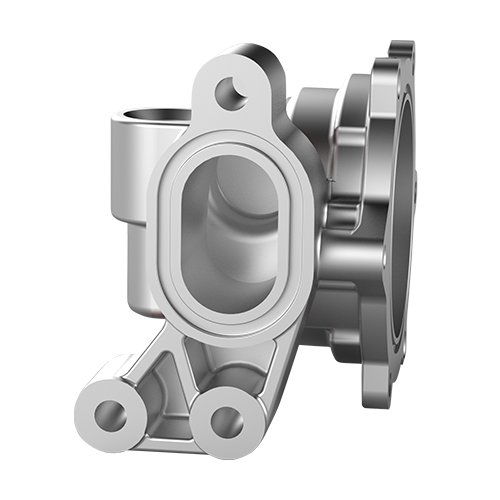

New-energy automotive component

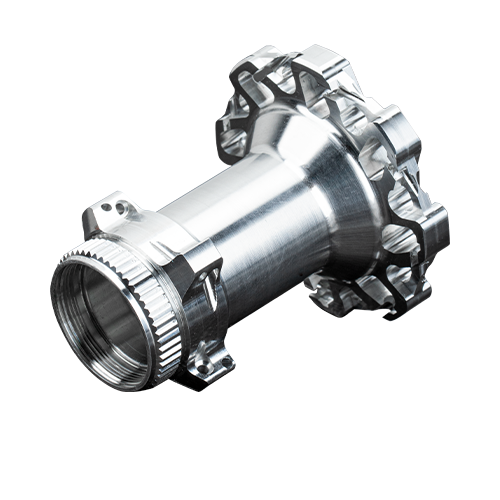

Bicycle wheel hub component
-
ItemsTechnical Parameter
-
X/Y/Z travel160/320/390mm
-
Max workpiece diameterφ160mm
-
Max workpiece heightφ160mmx260mm
-
Max load of worktable0°：15kg，90：10kg
-
Machine net dimension1100×1990×2390mm
-
Machine net weight2200kg
